B CABLE SUSPENSION CLAMP FOR 5/8" THRU BOLTS

E SPAN CLAMP

1. Used as a grounding electrode for buildings and utility poles.
2. Manufactured from AISI 1035 Steel.
3. Copper is electrically bonded to the entire length of the rod.
4. Size of rod, manufacturers mark, and appropriate testing requirement is stamped near the end of each rod for easy identification.
5. Steel is drawn before plating for strength and consistency.
6. Rod ends are chamferred to prevent "mushrooming" while driving and allows ground clamp to slip over rod after installation.

1/2'' SPRING WASHER HOT DIP GALVANIZED
1. Spring Washers are used to keep bolt assemblies on crossarms under tension and correct for shrinkage.
2. Gauage size is 3/16" x 1".
3. Spring Washers are formed from Spring Steel.
4. Hot dip galvanized to meet ASTM Specification A153.

DRIVE SCREW SQUARE HEAD FETTER THREAD DRIVE POINT HOT DIP GALVANIZED
1. Used to attach poleline hardware to utility poles and other wood structures.
2. Manufactured with curved upward "fetter" type thread that can be either wrenched or driven.
3. Supplied with square head unless noted otherwise.
4. Available with drive point.
5. Bolt head marking (ABI) appears on head of each bolt, and is egistered with the U.S.Patent Office per the Fastener Insignia Act.
6. Manufactured from Grade 2 Steel.

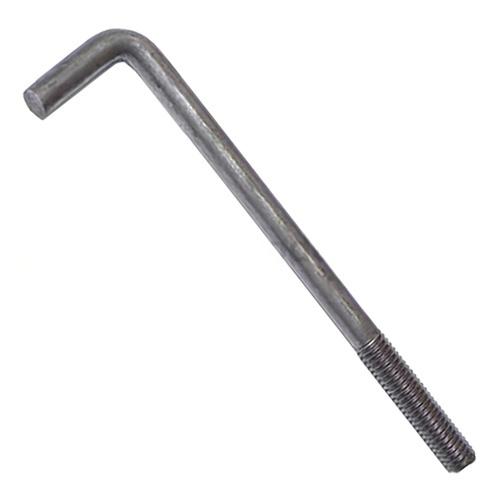

1. L Anchor Bolts are used to attach plates to concrete or masonry foundations, provide anchorage for lightweight post bases and for general anchorage to concrete.
2. Manufactured from ASTM F1554 Grade 36 Steel.
3. Hot Dip Galvanized to meet ASTM Specification A153.

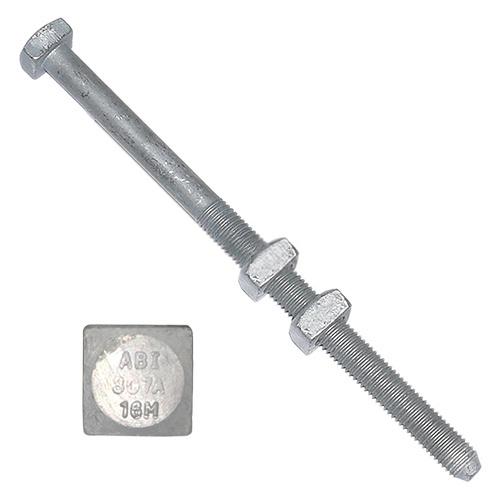

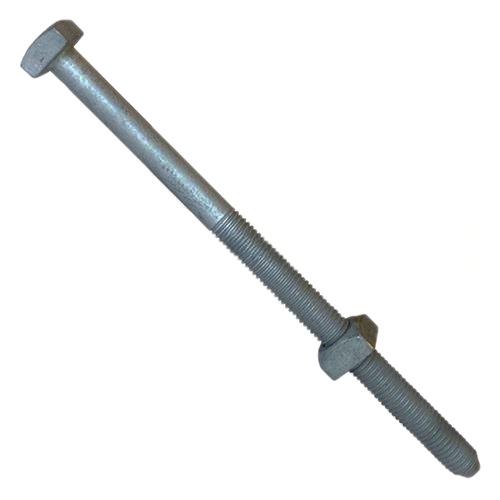

1. Used to secure cable suspension clamps and other poleline brackets and clamps.
2. Each square head bolt is supplied with two attached regular square nuts.
3. Bolt provided with cone point to ease starting.
4. Bolt head marking (ABI) appears on head of each bolt and is registered with the U.S. Patent Office per the Fastener Insignia Act. Tensile load designation mark (i.e. 10M, 16M, 25M) also appears on head of each bolt.
5. A minimum of six inches of thread per bolt.

1. Designed for use in corrosive environments.
2. Thermally Diffused Galvanized per ASTM Specification A1059 and then treated with a silicate based top-coat.
3. Bolts have assembled Regular Square Nuts.
4. Bolts have Cone Points to ease assembly.
5. Minimum tensile strength is 9,400lbf.
